LAN Phy Rate from SmartZone REST API

ruckgscz

Hello,

We have thousands of Ruckus APs and are looking to automate, as manual management is becoming too burdensome. We are looking to check AP LAN Phy negotiated rate and take action if it is not 1 gigabit.

From https://community.ruckuswireless.com/t5/SmartZone-and-Virtual-SmartZone/Way-to-list-APs-by-ethernet-speed/m-p/20818 it appears it was possible to get Lan Phy rate in previous versions of SmartZone REST API. However in our version, 6.1.0.0.935, this data is not available.

Is there another REST endpoint Phy rate moved to? Am I overlooking something?

In current version, GET /aps/{macaddr} returns the following. ['portInfo']['phyLink'] is not present



Spoiler

{'mac': '5C:DF:89:...',
'zoneId': '94b5d791-dda0-4ad7-...',
'awsVenue': None,
'apGroupId': '4d0b34e4-20b6-...',
'serial': '412129...',
'model': 'H550',
'name': 'xyz',
'description': None,
'gpsSource': None,
'latitude': '',
'longitude': '',
'location': None,
'locationAdditionalInfo': None,
'provisionChecklist': '',
'administrativeState': 'Unlocked',
'login': None,
'syslog': None,
'wifi24': None,
'wifi50': None,
'wlanService24Enabled': True,
'wlanService50Enabled': True,
'wlanGroup24': None,
'wlanGroup50': None,
'protectionMode24': None,
'network': {'ipType': None,
'ip': None,
'netmask': None,
'gateway': None,
'primaryDns': None,
'secondaryDns': None},
'networkIpv6': {'ipType': 'Keep',
'ip': None,
'gateway': None,
'primaryDns': None,
'secondaryDns': None},
'smartMonitor': None,
'bonjourGateway': None,
'clientAdmissionControl24': {'maxRadioLoadPercent': None,
'minClientCount': None,
'minClientThroughputMbps': None,
'enabled': False},
'clientAdmissionControl50': {'maxRadioLoadPercent': None,
'minClientCount': None,
'minClientThroughputMbps': None,
'enabled': False},
'venueProfile': None,
'specific': {'ledStatusEnabled': True,
'lldp': {'enabled': True,
'advertiseIntervalInSec': 30,
'holdTimeInSec': 120,
'managementIPTLVEnabled': True},
'lacp': None,
'cellularSettings': None,
'ledMode': None,
'internalHeaterEnabled': None,
'poeOutPortEnabled': False,
'usbPowerEnable': True,
'poeModeSetting': 'Auto',
'poeTxChain': 2,
'radioBand': None,
'externalAntenna24': None,
'externalAntenna50': None,
'lanPorts': [{'portName': 'LAN1',
'enabled': True,
'overwriteVlanEnabled': True,
'vlanUntagId': 1176,
'members': '1176',
'ethPortProfile': {'id': '1', 'name': 'Default Access Port'}},
{'portName': 'LAN2',
'enabled': True,
'overwriteVlanEnabled': True,
'vlanUntagId': 1176,
'members': '1176',
'ethPortProfile': {'id': '1', 'name': 'Default Access Port'}},
{'portName': 'LAN3',
'enabled': True,
'overwriteVlanEnabled': True,
'vlanUntagId': 1176,
'members': '1176',
'ethPortProfile': {'id': '1', 'name': 'Default Access Port'}},
{'portName': 'LAN4',
'enabled': True,
'overwriteVlanEnabled': True,
'vlanUntagId': 1176,
'members': '1176',
'ethPortProfile': {'id': '1', 'name': 'Default Access Port'}},
{'portName': 'LAN5',
'enabled': True,
'overwriteVlanEnabled': False,
'vlanUntagId': 1,
'members': '1-4094',
'ethPortProfile': {'id': '0', 'name': 'Default Trunk Port(WAN)'}}]},
'channelEvaluationInterval': None,
'autoChannelSelection24': {'channelSelectMode': 'BackgroundScanning',
'channelFlyMtbc': 480,
'channelFlyChangeFrequency': 33,
'channelFlyOptimizationTimePeriod': ['02:00-03:00']},
'autoChannelSelection50': {'channelSelectMode': 'BackgroundScanning',
'channelFlyMtbc': 480,
'channelFlyChangeFrequency': 33,
'channelFlyOptimizationTimePeriod': ['02:00-03:00']},
'apMgmtVlan': None,
'altitude': {'altitudeUnit': None, 'altitudeValue': None},
'meshOptions': None,
'recoverySsid': None,
'rogueApReportThreshold': 0,
'rogueApAggressivenessMode': 0,
'rogueApJammingThreshold': 50,
'directedMulticastFromWiredClientEnabled': None,
'directedMulticastFromWirelessClientEnabled': None,
'directedMulticastFromNetworkEnabled': None,
'testSpeedEnabled': False,
'lteBandLockChannels': [],
'rksGreForwardBroadcast': None,
'swapInMac': None,
'swapOutMac': None,
'snmpAgent': {'apSnmpEnabled': False,
'snmpV2Agent': None,
'snmpV3Agent': None}}





Thanks!!

bruno_andrade

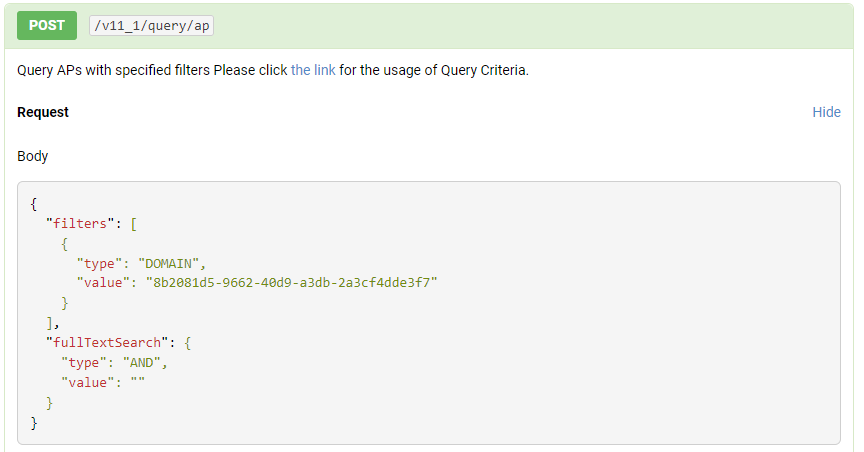

Hello, you can use the API QUERY APS: POST /v11_1/query/ap

It will return the port speed in "poePortStatus"

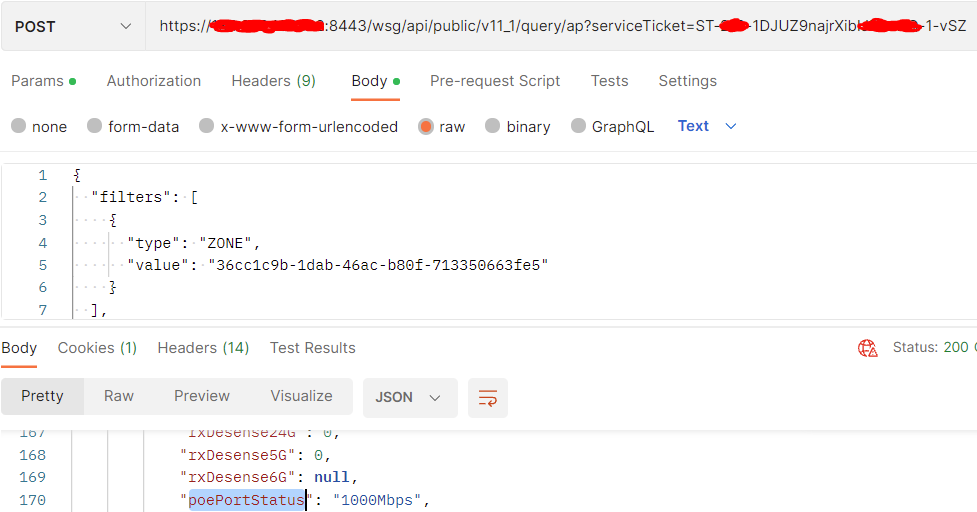

Using postman:
