dhcp request problem in 5Ghz wifi roaming on samsung s10.

jungyu_park

R610 / Unleashed 200.12.10.105.129

Hello.

Have any issue in the title been reported?
I sent data such as client logs and AP packet captures to Samsung for a month, but the answer I got back was, please contact the AP manufacturer.

The problem is that whenever my S10+ roams at 5Ghz, it gets a new dhcp.
It happens on both wpa2 and wpa3, no problem at 2.4Ghz.

I tested roaming on s10+, z flip3, tab s6 lite, tab s8, but there is only a problem with s10+ 5ghz.

I left a request again, including a google link with images of client trouble shooting, but I'm also posting here.

https://drive.google.com/drive/folders/1KwJQPJws09W5LmarJI21SF_uyV5L7pPh?usp=share_link


Find more posts tagged with

Accepted answers

syamantakomer

Hi @jungyu_park,

This seems like an issue on client device side because I do see roaming happening correctly (you can see re-association frames in the connection trace).

Please note, AP doesn't interrupt or temper client IP acquisition (other than VLAN configuration on WLAN and if you enable force DHCP).

A packet capture and AP logs may help here but for that I would suggest opening a support case for better troubleshooting and quicker resolution.

jungyu_park

There was a firmware update for the s10+ this morning. (G975NKSU7HVJ5)

Samsung replied to my inquiry, "Please talk to the AP manufacturer", and "if you have any additional questions, you should ask again with a new log."

But strangely, after updating to the new firmware, the problem cannot be reproduced.

That's right. Now, even when roaming at 5Ghz, dhcp does not renew.

It feels like it's been resolved.

All comments

Rao

Hi @jungyu_park,

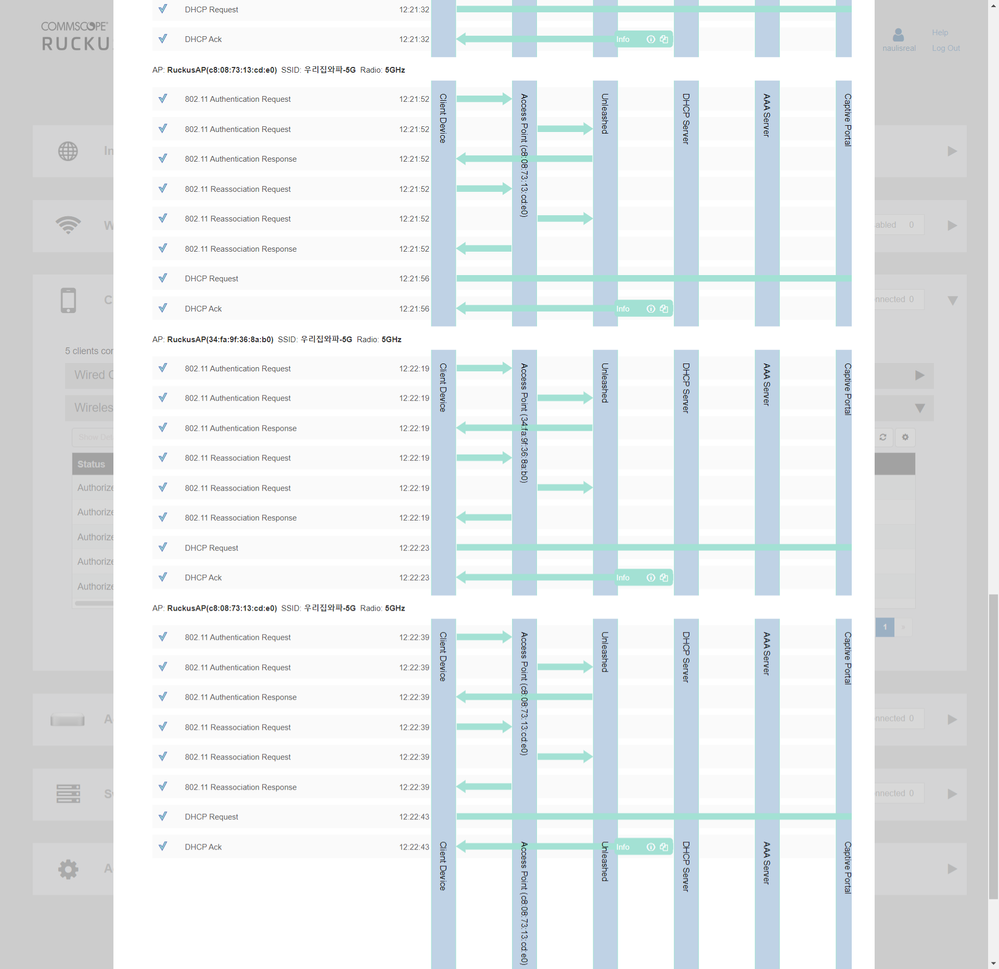

We do not have any known issue with S10+ not being able to receive DHCP IP on 5Ghz radio. From the client troubleshooting screenshot provided, I can see that the DHCP ACK from the server is being forwarded to the client through AP. Would you be able to verify if a valid IP is seen in the DHCP ACK info field on the same client troubleshooting page? Additionally in order to fully trace the DHCP packet, we need to collect a packet capture from the AP 5ghz radio which will give more info on the problem. You can follow the step mentioned in https://docs.commscope.com/bundle/unleashed-200.11-onlinehelp/page/GUID-FE747C7C-8F63-409B-A423-63F898CA8331.html to gather the packet capture using which we can identify if the DHCP packets are forwarded to client or not.

Regards,

Rao

syamantakomer

Hi @jungyu_park,

This seems like an issue on client device side because I do see roaming happening correctly (you can see re-association frames in the connection trace).

Please note, AP doesn't interrupt or temper client IP acquisition (other than VLAN configuration on WLAN and if you enable force DHCP).

A packet capture and AP logs may help here but for that I would suggest opening a support case for better troubleshooting and quicker resolution.

jungyu_park

Hello.
Thank you for answer.
I also think it's a client's problem, but I don't know how much Samsung will care about the S10+, which is close to EOL.

jungyu_park

I have additionally uploaded the packet capture files I sent to Samsung to the Google Drive link.

syamantakomer

Looking at the capture, I found a weird thing, FT roaming is enabled on SSID but still 4 way handshake is happening post re-association.

Logically you will not see 4 way handshake happening separately if FT roaming is enabled and when client roams from one AP to another.

jungyu_park

Perhaps FT was not working at the time of capture.
Just recaptured.

https://drive.google.com/drive/folders/1E57OiWGpdbKksqirpzfWiXyh772MQvgN?usp=sharing
