Ruckus icx 7150-c12p - stopped working.

ssolipuram99

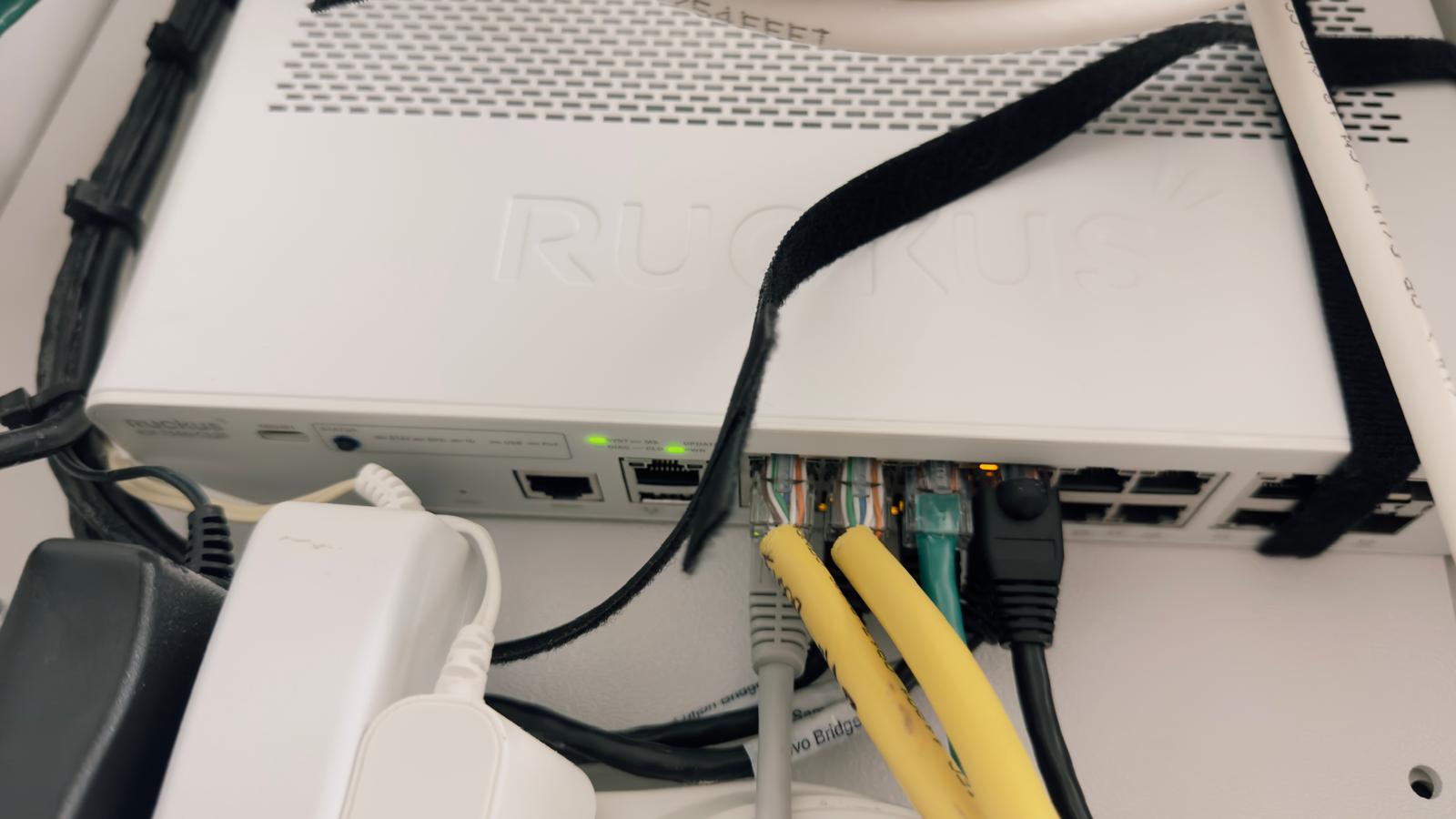

Hi - I an issue where my Ruckus icx 7150-c12p is not working. I tried rebooting the switch few times and also tried connecting WAP to different ports without luck. looks like only one port might be working where I have MY q device installed. Attaching a photo of the device after multiple restarts and port changes. Tried login to the admin console but none of the user/pass combinations work. Home internet is working via the IP router but the WAP and other smart devices are not except one as you can see on the photo.

Find more posts tagged with

Accepted answers

imran.sanadi@commscope.com

Hi @ssolipuram99

Thank you for your response and for providing the command outputs.

Based on the information shared, it appears that the ports on the RUCKUS ICX-7150-C12P Switch may have entered a disabled state.

To troubleshoot and resolve this issue, please refer to the following RUCKUS Lennar Knowledge Base self-help article:

/kb/articles/6-no-power-on-access-points-and-icx-7150-c12p-switch-with-green-lights-on-syst-pwr-and-poe-disabled

Please follow the steps outlined in the article and let me know the outcome. If you encounter any issues during the process, I will be happy to assist further.

Thank you again for your patience and understanding.

Best regards,
Imran Sanadi
RUCKUS | Lennar Home Community Support

ssolipuram99

Thank you very much for your help. That helped and all the devices are now connected.

All comments

imran.sanadi@commscope.com

Hi @ssolipuram99

Greetings!!!

Thank you for reaching out to the RUCKUS Lennar Home Community.

We appreciate your patience and understanding as we work to resolve the issues you are experiencing with your RUCKUS setup.

Based on the information provided, it appears that you are encountering intermittent internet connectivity.

We apologize for any inconvenience this has caused and are committed to assisting you promptly.

Could you please download the Putty Application and try to log in to the CLI using the Switch IP Address from the IP Scan and share the output of the below commands?

Putty download link:https://www.putty.org/

You could try the SSH Or Telnet option to log in to CLI (Putty) as described in the same guide- Please refer below

SSH- Port 22

Telnet – Port 23 (If SSH doesn’t work)

If you can access the Command line should look like this:

ICX7150-C12 Router> OR

ICX7150-C12 Switch>

Please enter the below commands once you log in to CLI and share the output.

Note: Hit Enter to accept each command

enable

show version

show flash

show inline power

show inline power detail

show interface brief

Please share the output of the above commands and let me know if you are stuck at any point.

Thank you again for your patience and understanding.

Best regards,
Imran Sanadi
RUCKUS | Lennar Home Community Support

ssolipuram99

telnet@ICX7150-C12-Switch>enable
No password has been assigned yet...
telnet@ICX7150-C12-Switch#show version
Copyright (c) 1996-2017 Brocade Communications Systems, Inc. All rights reserv ed.
UNIT 1: compiled on Aug 14 2017 at 06:54:44 labeled as SPS08061a
(24723488 bytes) from Primary
SW: Version 08.0.61aT211
Compressed Boot-Monitor Image size = 786944, Version:10.1.10T225 (mnz10110 )
Compiled on Sun Jun 25 09:25:15 2017

HW: Stackable ICX7150-C12-POE
==========================================================================
UNIT 1: SL 1: ICX7150-C12-2X1G POE 12-port Management Module
Serial #:FEK3205P0F0
Current License:
P-ASIC 0: type B160, rev 11 Chip BCM56160_B0
==========================================================================
UNIT 1: SL 2: ICX7150-2X1GC 2-port 2G Module
==========================================================================
UNIT 1: SL 3: ICX7150-2X10GF 2-port 20G Module
==========================================================================
1000 MHz ARM processor ARMv7 88 MHz bus
8192 KB boot flash memory
2048 MB code flash memory
1024 MB DRAM
STACKID 1 system uptime is 21 hour(s) 52 minute(s) 11 second(s)
The system started at 00:02:04 GMT+00 Sat Jan 01 2000

The system : started=cold start

telnet@ICX7150-C12-Switch#show flas
Stack unit 1:
Compressed Pri Code size = 24723488, Version:08.0.61aT211
Compressed Sec Code size = 28314668, Version:08.0.61aT213
Compressed Boot-Monitor Image size = 786944, Version:10.1.10T225
Code Flash Free Space = 1314447360
telnet@ICX7150-C12-Switch#show flash
Stack unit 1:
Compressed Pri Code size = 24723488, Version:08.0.61aT211
Compressed Sec Code size = 28314668, Version:08.0.61aT213
Compressed Boot-Monitor Image size = 786944, Version:10.1.10T225
Code Flash Free Space = 1314447360
telnet@ICX7150-C12-Switch#show inline power

Power Capacity: Total is 124000 mWatts. Current Free is 124000 mWatts.

Power Allocations: Requests Honored 0 times

Port Admin Oper ---Power(mWatts)--- PD Type PD Class Pri Fault/
State State Consumed Allocated Error
--------------------------------------------------------------------------
1/1/1 Off Off 0 0 n/a n/a 3 n/a
1/1/2 Off Off 0 0 n/a n/a 3 n/a
1/1/3 Off Off 0 0 n/a n/a 3 n/a
1/1/4 Off Off 0 0 n/a n/a 3 n/a
1/1/5 Off Off 0 0 n/a n/a 3 n/a
1/1/6 Off Off 0 0 n/a n/a 3 n/a
1/1/7 Off Off 0 0 n/a n/a 3 n/a
1/1/8 Off Off 0 0 n/a n/a 3 n/a
1/1/9 Off Off 0 0 n/a n/a 3 n/a
1/1/10 Off Off 0 0 n/a n/a 3 n/a
1/1/11 Off Off 0 0 n/a n/a 3 n/a
1/1/12 Off Off 0 0 n/a n/a 3 n/a
--------------------------------------------------------------------------
Total 0 0

telnet@ICX7150-C12-Switch#show inline power detail

Power Supply Data On unit 1:
++++++++++++++++++

Power Supply Data:
++++++++++++++++++

Power Supply #1:
Max Curr: 2.3 Amps
Voltage: 54.0 Volts
Capacity: 124 Watts
PoePower: 124 Watts

POE Details Info. On Unit 1 :

General PoE Data:
+++++++++++++++++

Firmware
Version
----------------
01.8.7 Build 021

Hardware
Version
----------------
V2R2

Cumulative Port State Data:
+++++++++++++++++++++++++++

#Ports #Ports #Ports #Ports #Ports #Ports #Ports
Admin-On Admin-Off Oper-On Oper-Off Off-Denied Off-No-PD Off-Fault
-------------------------------------------------------------------------
0 12 0 12 0 0 0

Cumulative Port Power Data:
+++++++++++++++++++++++++++

#Ports #Ports #Ports Power Power
Pri: 1 Pri: 2 Pri: 3 Consumption Allocation
-----------------------------------------------
0 0 0 0.000 W 0.000 W

telnet@ICX7150-C12-Switch#show interface brief

Port Link State Dupl Speed Trunk Tag Pvid Pri MAC Name
1/1/1 Down None None None None No 1 0 78a6.e140.3dac
1/1/2 Up Forward Full 1G None No 1 0 78a6.e140.3dad
1/1/3 Down None None None None No 1 0 78a6.e140.3dae
1/1/4 Up Forward Full 100M None No 1 0 78a6.e140.3daf
1/1/5 Down None None None None No 1 0 78a6.e140.3db0
1/1/6 Up Forward Full 100M None No 1 0 78a6.e140.3db1
1/1/7 Up Forward Half 10M None No 1 0 78a6.e140.3db2
1/1/8 Up Forward Full 100M None No 1 0 78a6.e140.3db3
1/1/9 Down None None None None No 1 0 78a6.e140.3db4
1/1/10 Down None None None None No 1 0 78a6.e140.3db5
1/1/11 Down None None None None No 1 0 78a6.e140.3db6
1/1/12 Down None None None None No 1 0 78a6.e140.3db7
1/2/1 Down None None None None No 1 0 78a6.e140.3db9
1/2/2 Down None None None None No 1 0 78a6.e140.3dba
1/3/1 Down None None None None No 1 0 78a6.e140.3dbb
1/3/2 Down None None None None No 1 0 78a6.e140.3dbc
mgmt1 Down None None None None No None 0 78a6.e140.3dac
telnet@ICX7150-C12-Switch#

ssolipuram99

CLI output above.

imran.sanadi@commscope.com

Hi @ssolipuram99

Thank you for your response and for providing the command outputs.

Based on the information shared, it appears that the ports on the RUCKUS ICX-7150-C12P Switch may have entered a disabled state.

To troubleshoot and resolve this issue, please refer to the following RUCKUS Lennar Knowledge Base self-help article:

/kb/articles/6-no-power-on-access-points-and-icx-7150-c12p-switch-with-green-lights-on-syst-pwr-and-poe-disabled

Please follow the steps outlined in the article and let me know the outcome. If you encounter any issues during the process, I will be happy to assist further.

Thank you again for your patience and understanding.

Best regards,
Imran Sanadi
RUCKUS | Lennar Home Community Support
