Installing RUCKUS IoT Controller on Hyper-V

Elnoor

I downloaded the RUCKUS IoT 2.4.0.0 (GA) vRIoT Server Software Release (OVA) and converted the VMDK file to VHD format using the StarWind V2V Converter tool.

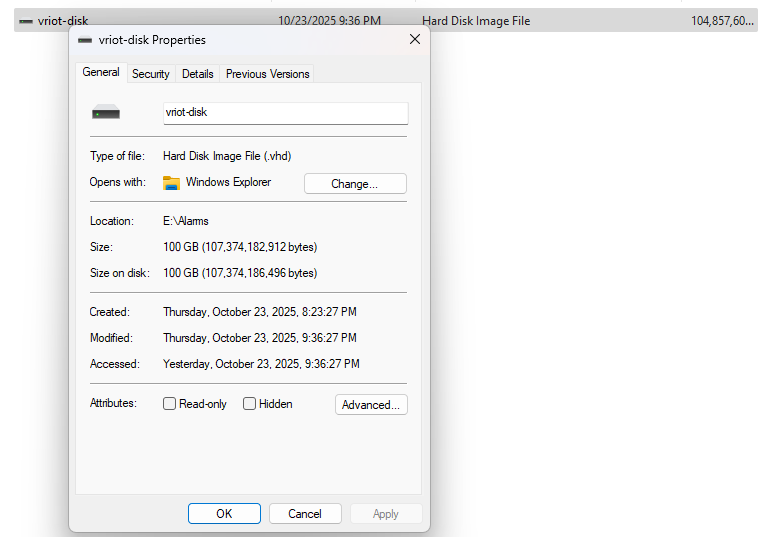

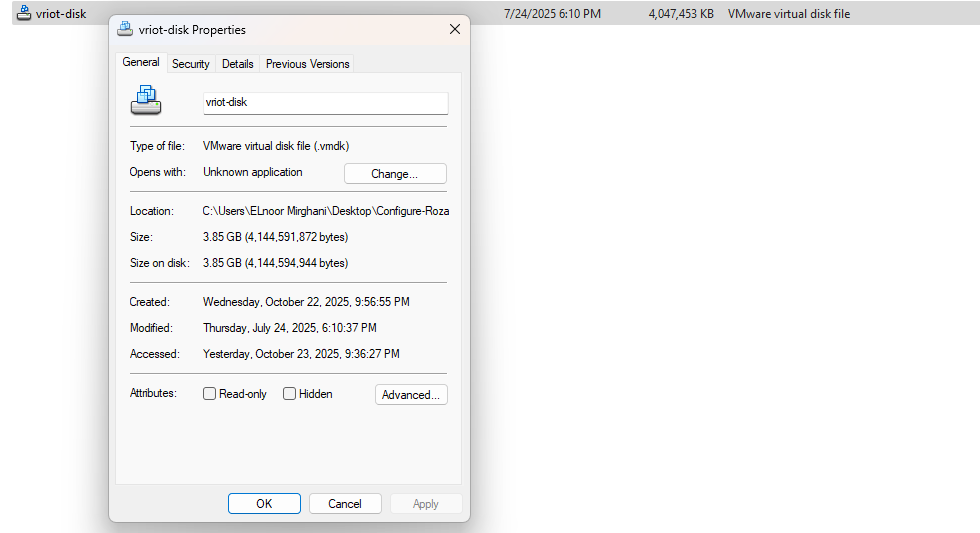

However, after the conversion, I noticed that the VHD file size increased to 100GB, while the original VMDK file size was only 4GB.

Could you please confirm whether this size increase is normal or if the file needs to be reconverted?

Find more posts tagged with

Accepted answers

AshwinM

Hi Elanoor,

Yes, this is expected behavior. Starting from the vRIoT 2.3.0.0 GA release, the virtual machine hosting the RUCKUS IoT Controller must meet the following minimum requirements:

4 vCPUs
4 GB RAM
100 GB fixed HDD

While the vCPU and RAM requirements remain the same, the minimum disk space has increased from 20 GB to 100 GB.

For more details, please refer to the link below:
https://docs.commscope.com/bundle/iot-2.4.0.0-installationguide/page/GUID-2CEFF55A-0A00-4886-A1CF-A5DE23E16276.html

Best regards,
Ashwin M

All comments

Elnoor

Mayank

AshwinM

Hi Elanoor,

Yes, this is expected behavior. Starting from the vRIoT 2.3.0.0 GA release, the virtual machine hosting the RUCKUS IoT Controller must meet the following minimum requirements:

4 vCPUs
4 GB RAM
100 GB fixed HDD

While the vCPU and RAM requirements remain the same, the minimum disk space has increased from 20 GB to 100 GB.

For more details, please refer to the link below:
https://docs.commscope.com/bundle/iot-2.4.0.0-installationguide/page/GUID-2CEFF55A-0A00-4886-A1CF-A5DE23E16276.html

Best regards,
Ashwin M

Elnoor

Hi Ashwin,

thank you for the detailed information.

Could you please share the download link or installation package IoT Software Version 2.2.1.0.25

AshwinM

Hi Elnoor,

Sure! Please find the link below.
https://support.ruckuswireless.com/software/4055-ruckus-iot-2-2-1-0-mr-vriot-server-software-release-for-hypervisor-tar-gz-upgrade-image

Regards,
Ashwin M

Elnoor

After completing the installation, I attempted to add an Access Point (AP) with model H350 running firmware version 6.1.2.0.850. However, I encountered the following error:
“Gateway IoT firmware mismatch.”

Request for Assistance:
Please advise how to verify the correct IoT firmware version compatible with this AP and provide guidance on the proper procedure to upgrade the IoT firmware to resolve the mismatch issue. IOT-Firmware mismatch.png

Elnoor

Displaying Events
