suspect switch is running Routing Code after power outage, unable to locate IP when scanning network

BT
New Contributor II

After power outage experiencing poor/intermittent internet connectivity. Suspecting the switch is running routing code as documented here:

https://community.ruckuswireless.com/t5/RUCKUS-Lennar-Support-Knowledge/Fixing-RUCKUS-ICX-7150-C12P-...

Following instructions to locate the switch IP and am unable to locate the IP as documented here:
https://community.ruckuswireless.com/t5/RUCKUS-Lennar-Support-Knowledge/How-to-find-the-IP-Address-o...





1 ACCEPTED SOLUTION

Hi @BT

Greetings of the day!!!

Thank you for sharing the requested information on an private chat.

Based on the troubleshooting done, your ICX-7150-C12P Switch is not working with console cable to access CLI and not getting IP address assigned from the ISP (Internet Service Provider's) Router. Checked with multiple troubleshooting steps. However, the failure persists. This Switch unit Should be RMA (Return Merchandise Authorization) in simple words replacing it.

Feel free to contact us via chat, comment you already have a post, copy the link from the post (URL), and paste it into the chat to start the unit replacement.

Please follow the steps as shown in the below example:

As shown in the below picture, copy the link and share it via chat from the link provided:

The below link is to contact us by chat (only)

https://support.ruckuswireless.com/contact-us

Did I answer your queries? If yes, hit the Kudos buttons and also accept the answers as Accepted solutions.

Please let me know if you have any queries in this regard.

Thank you again. We really appreciate your patience and understanding.



Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

View solution in original post

20 REPLIES 20

Hi @BT

I hope this message finds you well.

Thank you for your response and the update.

Could you please follow the procedure outlined below and check the results?

1. Press 'b' as demonstrated in the video.

2. Enter the following commands:

  • no password
  • factory set-default
  • boot

Please perform these steps and let me know the outcome.

Thank you once again for your patience and understanding.



Best regards,

Imran Sanadi
RUCKUS Lennar Home Community

Hi @BT

Greetings!!!

I trust this message finds you well.

I kindly request an update on the status of the issue so that we may proceed further with resolving it.

Thank you.



Best regards,
Imran Sanadi
RUCKUS Lennar Home Community

BT
New Contributor II

Hi Imran,

I was able to run the factory set-default command successfully. The switch booted both images without error. However, I’m still prompted for login. What steps should I be performing after the factory set-default step?

Hi @BT

Thank you for the response and the information you shared.

Yes, after the Switch reset, there will be a default password.

Could you please once again try with the Switch default credentials as mentioned below?

Username: super

Password: sp-admin

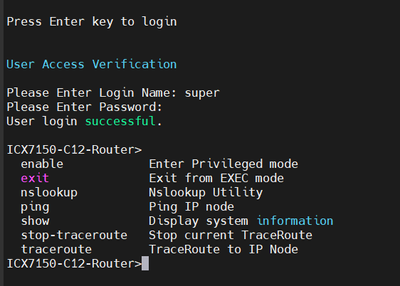

If the above credentials don’t work, you can try the default credential combinations mentioned below in the screenshot.

Please try and let me know if that works.

Thank you again for your patience.



Best regards,

Imran Sanadi

RUCKUS Lennar Home Community.

BT
New Contributor II

Hi Imran,

Thank you for your guidance I have been able to successfully login with a combination of username and password from the screenshot. I have also reset the password when prompted. What steps should I now perform?
