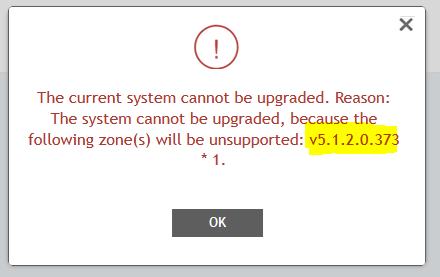

v/SZ- "The system cannot be upgraded, because the following zone(es) will be unsupported"

Orlando_Elias
RUCKUS Team Member

If you're receiving an error message like this, is because there are some AP Zones that have been configured with an unsupported version.


Let's use for example the version 6.1.1

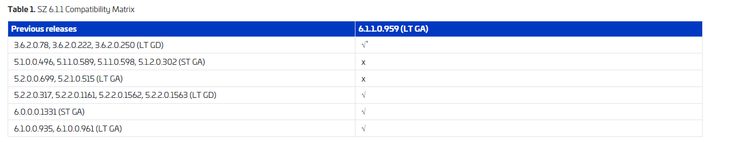

In the Upgrade guide, we can find this matrix stating which AP firmware will be unsupported:

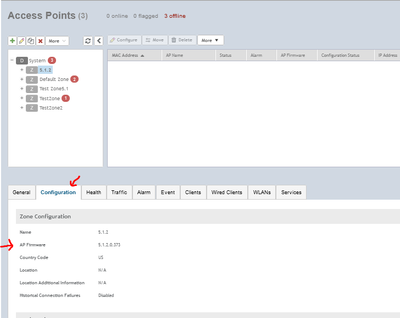

To identify the AP Zone(es) with supported/unsupported firmware, select the AP Zone and scroll down to the Configuration tab.

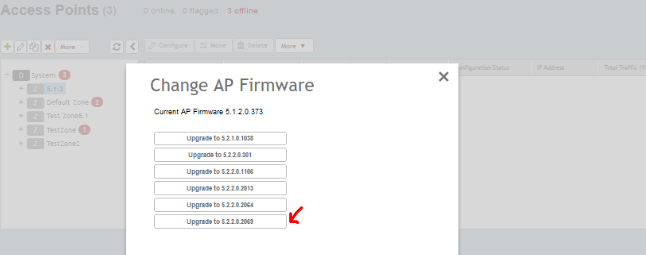

To change the AP firmware configuration, slelect the AP Zone, click 'More' and then 'Change AP Firmware':


Select an AP firmware that will be supported in the controller.


It's recommended to use the latest AP patch available in the RUCKUS support site.

v/SZ - How to upload an AP patch? Upgrade the version of the APs.

v/SZ - What is the latest SmartZone firmware supported for the AP R700?

v/SZ - What is the latest SmartZone firmware supported for the AP R600?









With regards,
--
Orlando Elias
Technical Support
