Correct way to factory reset an SZ100, SZ104, SZ124, SZ144

cecil_dsilvia
Internal Employee

Note: Pressing and holding of the reset button will not factory reset the device, this will only restart the device

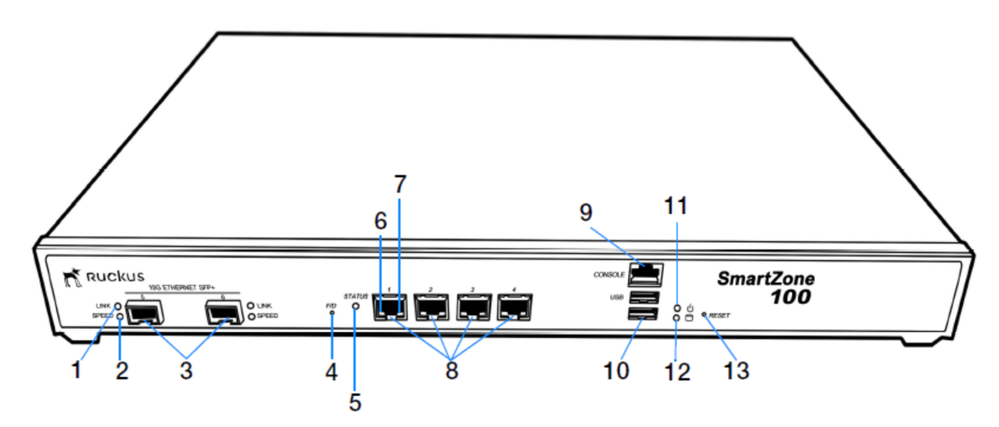

  • Button 4 is called the f/d button which factory-defaults / factory-resets the device
  • Press and hold for 10 seconds to activate the reset
  • Button 13 is reset which is for restarting the device
  • Press and hold for 5 seconds to activate the reset


The location of the button is different for SZ144, please find the attached image for the location


Reference: RUCKUS SmartZone 100 Getting Started Guide

Cecil D'silva
Sr. Technical Support Engineer Ruckus WLAN
